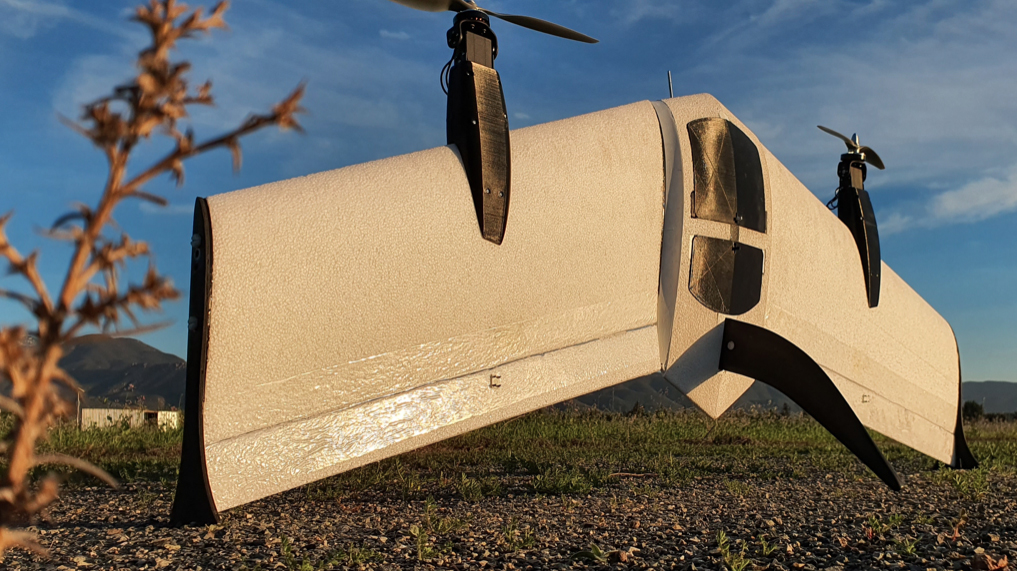

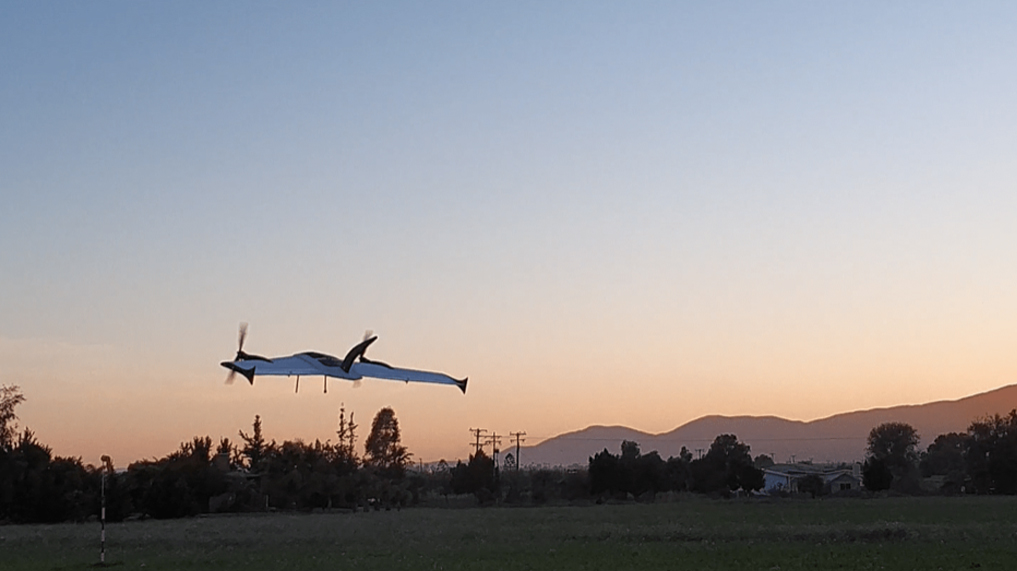

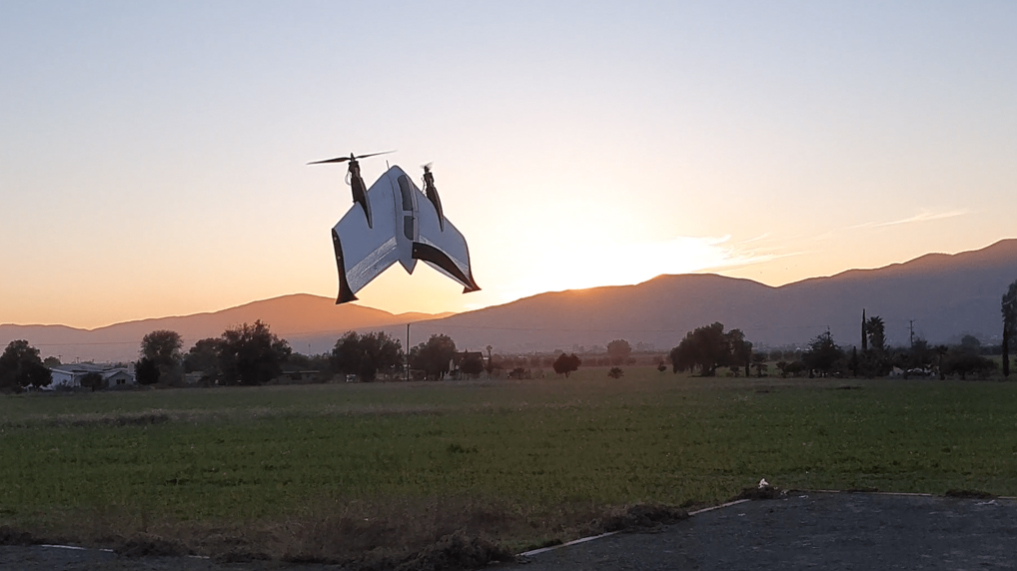

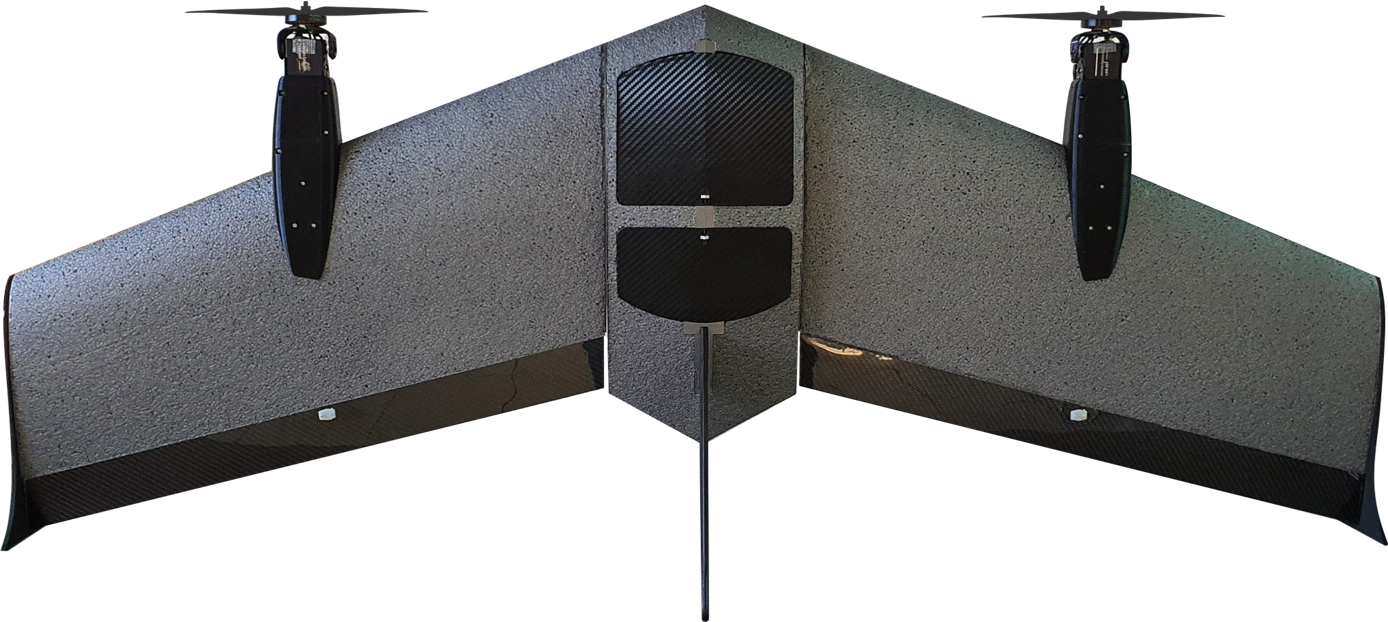

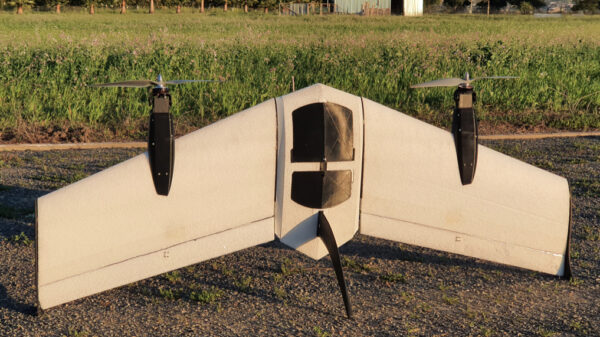

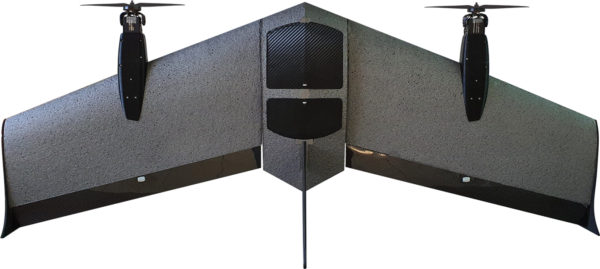

The Mini Orca is an easy drone to pilot, one of its amazing features is its ability to transition from a multirotor flight into fixed wing flight. Which converts into a longer flight time of up to 40% more in fixed wing. The dimensions of 1.5 meters of wingspan and easy assembly make it easy to transport.
Due to the high amount of requests, we decided to make an early release, We are still working on the documentation and support for this platform, for the moment is recommended only for advanced/expert users. If you need shipping ETA or special request, please email us at sales@lpbond.com
General Specs
- Brand Name: LP Bond
- Item Name: Mini Oca
- Wingspan: 1500mm/59.05in
- Length: 610mm/24in
- Flying speed: 12 to 90km/h
- Rudder: Yes (Differential power)
- Aileron: Yes
- Empty Weight: 2250g (w/o FPV gear, payload, Battery)
- MTOW: 3200g
- Material: Crash Resistant EPP
- CG: 19.1mm from the fuselage tip (mark under the wing)
- Color: Black Charcoal
Power
- Motor: Brushless Motor 4006 740KV – 3510XF 715KV
- Motor Shaft Diameter: 5mm
- ESC: 40A w/o BEC
- Servos: 2x Slim Digital Servo
- Vector Servos: 270° Digital Servo
- Propeller: 1 x 15×5.5 Inch MR and 1 x 15×5.5 Inch MRP
- Battery: LiPo 4S 6000mAh 25C, Li-ion 4S 10500 mAh 25C
Recommend Electronics
- Autopilot: ArduPilot Compatible
- GPS+Compass: GPS u-Blox Neo-M8N
- Telemetry: SiK Telemetry Radio 915Mhz, 433Mhz
RC
- Recommend Radio: ≥6CH
